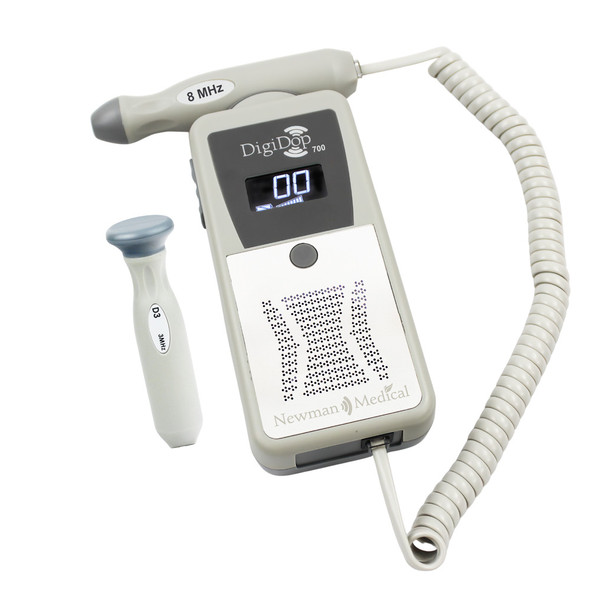

DD-700 Vascular Doppler

The DD-700 battery-operated vascular doppler provides a large, sharp, bright display of the pulse rate. The readout can easily be seen in a variety of conditions. The powerful digital processor in the DigiDop performs a true auto-correlation calculation for fast, accurate pulse rate. The display also indicates battery, volume, and signal strength status.

Superior sound quality

Newman Dopplers have the sensitivity and audio response to allow you to hear pulse tones quickly and clearly. All DigiDops have state of the art Digital Sound Clarity – DSC™. A sound processor in the main unit enhances the sounds you want to hear while reducing those you don’t. With DSC processing is optimally set for each different probe frequency.

The DigiDops speakers are small but powerful high fidelity speakers that have extraordinarily smooth and rich response over the whole range of Doppler sounds.

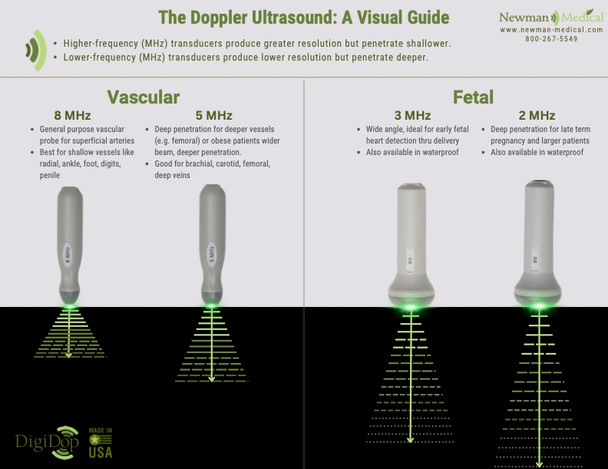

5 & 8 Mhz Vascular Probes

All DigiDop vascular probes provide the sensitivity and reliability you need. All probes will work on all DigiDops for maximum versatility. The 5 and 8 MHz vascular probes utilize exclusive eXtended Depth – XD™ technology that has increased sensitivity at closer depths without sacrificing it at deeper depths. These probes create more than six times as much signal at some depths that other probes. All Newman vascular probes have a smooth contour design that is comfortable to hold, comfortable for the patient, and easy to clean.

• 5 MHz probes provide excellent deep penetration for deeper arteries and veins
• 8 MHz probes are especially sensitive for vessels near the surface like the radial, posterior tibial, and dorsalis pedis arteries

The body is made of a mix of tough plastics with a unique stainless steel grill over the speaker. The latest DigiDop’s smooth, clean lines are also more comfortable in the hand. The grill now has micro-screen openings to protect the speaker; the speaker itself has an internal sound transparent fabric cover to keep out dirt and dust.

The unique magnetic probe holder won’t crack or break and gently cradles the probe when not being used. The strong magnets hold the probe without being sensitive to how it’s rotated. The open design avoids gathering dirt, gel and germs.

Batteries

The alkaline batteries provided with the DigiDop will produce hours of use, enough for hundreds of typical exams.

Industry Leading Five Year Warranty

All DigiDop Dopplers come with a ‘bumper-to-bumper’ 5 year warranty. The warranty includes both parts and labor and covers not just the main unit but also the probes and cords. We can offer this outstanding warranty because our design and materials reduce the number and cost of warranty issues.
